Fk Rod Ends Usa Made 3/4 Teflon Coated Right Hand Thread Chromoly Rod End Heim Joint With 3/4 Hole

Fk Rod Ends Usa Made 3/4 Teflon Coated Right Hand Thread Chromoly Rod End Heim Joint With 3/4 Hole
    Quantity in Basket: None
    Part Number: fkrodendjmx12t
    Price: $49.30
    Sold As: 1 Rod End Heim Joint


    Quantity:

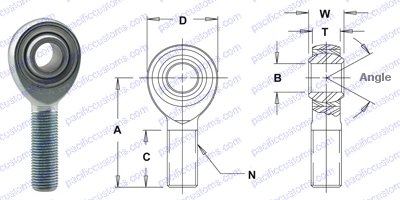

    Heavy Duty JMX 3 Piece Teflon Coated Rod End Specs

    Heavy Duty JMX 3 Piece Teflon Coated Heim Joint Specs MATERIALS
    BALL BODY RACE
    52100 STEEL STEEL ALLOY HEAT TREATED STEEL ALLOY HEAT TREATED
    Rc 56 MIN. HARD ZINC PLATED ZINC PLATED
    HARD CHROME PLATED CHROMATE TREATED CHROMATE TREATED
    Part #'s B
    Dia.
    +.0015
    -.0005
    D
    Dia.
    +.010
    -.010
    W
    Width
    +.000
    -.005
    T
    Width
    +.005
    -.005
    Ball
    Dia.
    A
    Length
    +.015
    -.015
    N
    Thread
    .UNF 3A
    C
    Length
    +.062
    -.031
    Angle in Degrees if mounted in a clevis or between 2 tabs without misalignment shims ULT. Static
    Radial Load (lbs.)
    Approx.
    Weight (lbs.)
    FKJMX 3T .1900 .625 .312 .250 .437 1.250 10-32 .750 13 2,855 .03
    FKJMX 4T .2500 .750 .375 .281 .500 1.562 1/4-28 1.000 16 5,262 .04
    FKJMX 5T .3125 .875 .437 .344 .625 1.875 5/16-24 1.250 14 7,640 .07
    FKJMX 6T .3750 1.000 .500 .406 .719 1.938 3/8-24 1.250 12 9,550 .11
    FKJMX 7T .4375 1.125 .562 .437 .812 2.125 7/16-20 1.375 14 10,290 .16
    FKJMX 8T .5000 1.312 .625 .500 .937 2.438 1/2-20 1.500 12 16,242 .25
    FKJMX 10T .6250 1.500 .750 .562 1.125 2.625 5/8-18 1.625 16 17,959 .38
    FKJMX 12T .7500 1.750 .875 .687 1.312 2.875 3/4-16 1.750 14 28,090 .60
    FKJMX 14T-770 .8750 2.000 .875 .770 1.375 3.375 7/8-14 1.875 12 45,051 .91
    FKJMX 16T 1.0000 2.950 1.375 1.015 1.875 4.500 1-1/4-12 2.500 17 107,182 2.736
    FKJMX 16-1T 1.0000 2.950 1.375 1.015 1.875 4.500 1-14 2.500 17 107,182 2.464
