Chromoly HD IRS Trailing Arm Pivot Brackets For Stock Torsion Housing Using Frame Horns Requires Jig

Chromoly HD IRS Trailing Arm Pivot Brackets For Stock Torsion Housing Using Frame Horns Requires Jig
    Country Of Origin: U.S.A.
    Quantity in Basket: None
    Part Number: ac530005
    Price: $76.75
    Sold As: 1 Pair Of Irs Conversion Brackets With F-911 Grade 9 Bolt Stops, Two Pivot Bolts, Four Pivot Washers



    Quantity:

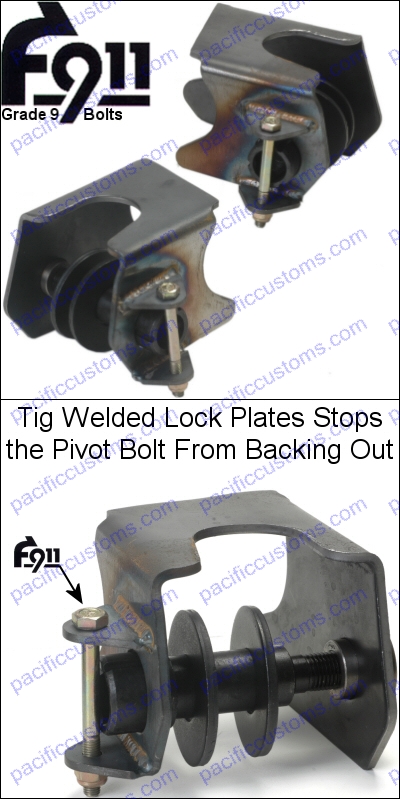

    When only the best will do, we offer these heavy duty IRS trailing arm pivot brackets. They have heavy duty Grade 9 F-911 Brand Bolts and tig welded pivot bolt stops so your pivot bolt will never back out. Designed for STOCK BEETLE torsion housings that have the factory Volkswagen transmission frame horns in the way.


    IRS Pivot Jig Installation Instructions Click Here To Download All 4 Pages - 5306kb
    Click Here To Download Page 1 Only - 1428kb
    Click Here To Download Page 2 Only - 1555kb
    Click Here To Download Page 3 Only - 1469kb
    Click Here To Download Page 4 Only - 873kb
