Billet Housing Wide Gear Center Load Rack And Pinion For A-Arm Front Suspension

Billet Housing Wide Gear Center Load Rack And Pinion For A-Arm Front Suspension
    Country Of Origin: Taiwan
    Quantity in Basket: None
    Part Number: ac425147
    Price: $370.00
    Sold As: 1 Billet Center Load Rack And Pinion



    Quantity:

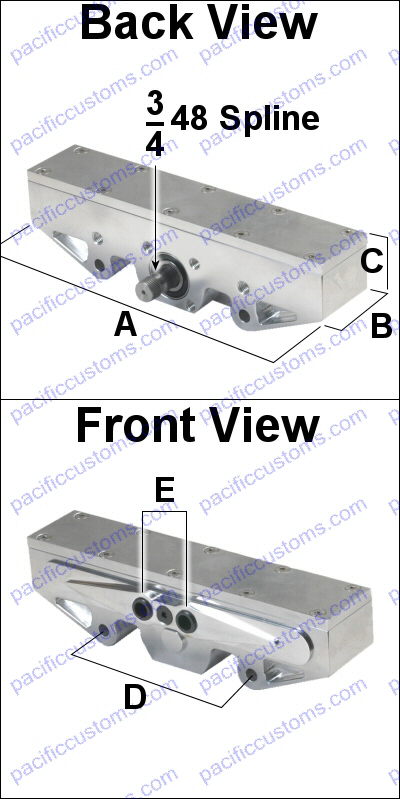

    Dimensions:
    1.5 Revolutions Lock To Lock
    A = 12.00 Inches
    B = 2.50 Inches Not Including The Cover Plate On The Front Side
    C = 2.00 Inches
    D = 6.00 Inches Center To Center
    E = 1.75 Inches Center To Center

    This rack and pinion has a 3/4-48 spline stub for the steering shaft.

    Two 1/2-20 bolts that are 3 inches long are required to mount a heim joint directly to the rack and pinion. If you are using a heim spreader / bump steer bracket then you'll need a longer bolt depending on the thickness of the heim spreader.

    Two 7/16-14 coarse thread 3/4 inch long bolts are required for the top mounting holes.
    Two 7/16-14 bolts that are 3 1/2 inches long are required for the bottom mounting holes.
    Two 7/16-14 nuts are required for the bottom mounting holes.
