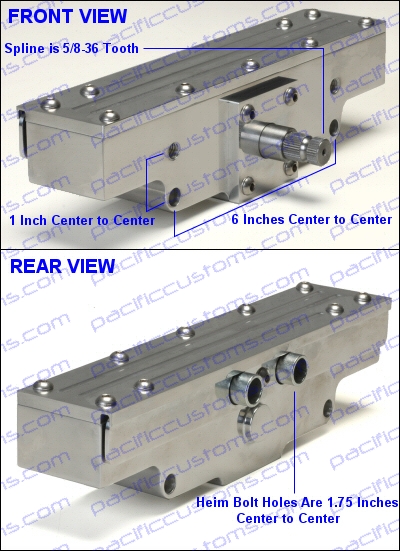

Billet Housing Center Load Rack And Pinion For A-Arm Front Suspension

Billet Housing Center Load Rack And Pinion For A-Arm Front Suspension
    Country Of Origin: Taiwan
    Quantity in Basket: None
    Part Number: ac425146
    Price: $313.75
    Sold As: Each



    Quantity:

    Dimensions:
    1.5 Revolutions Lock To Lock
    A = 12.50 Inches
    B = 2.25 Inches Not Including The Cover Plate On The Front Side
    C = 1.75 Inches
    D = 6.00 Inches Center To Center
    E = 1.75 Inches Center To Center

    This rack and pinion has a 3/4-48 spline stub for the steering shaft.

    Two 1/2-20 bolts that are 2 3/4 inches long are required to mount a heim joint directly to the rack and pinion. If you are using a heim spreader / bump steer bracket then you'll need a longer bolt depending on the thickness of the heim spreader.

    Two 3/8-16 coarse thread 5/8 inch long bolts are required for the top mounting holes.
    Two 3/8-16 bolts that are 3 inches long are required for the bottom mounting holes.
    Two 3/8-16 nuts are required for the bottom mounting holes.
