Billet Devil Sr. Rack And Pinion For 5/8 Heim Joints To Vw Front Axle Beam

Billet Devil Sr. Rack And Pinion For 5/8 Heim Joints To Vw Front Axle Beam
    Country Of Origin: Taiwan
    Quantity in Basket: None
    Part Number: ac425130
    Price: $404.00
    Sold As: 1 Rack And Pinion



    Quantity:

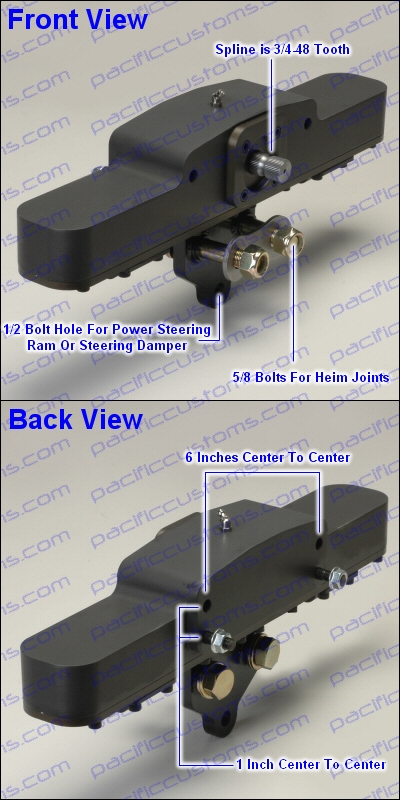

    The splined spud is 3/4-48 spline. The rack and pinion uses heim joints that have a 5/8 hole for the tie rods.

    Two 3/8 bolts that are 3 1/2 inches long are required to mount the rack and pinion on the top mounting holes.
    Four 3/8-24 nuts are required to mount the rack and pinion.
    Two 5/8 bolts that are 3 inches long are required to mount the heim joints to the rack and pinion.
