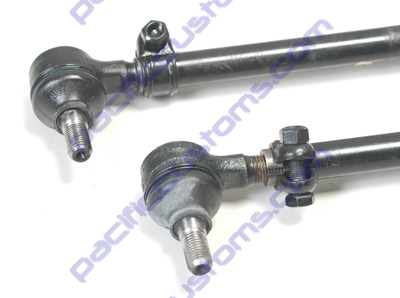

Black 2 Inch Narrowed Late Model Ball Joint Tie Rod Set With Steering Damper Hole

Black 2 Inch Narrowed Late Model Ball Joint Tie Rod Set With Steering Damper Hole
    Quantity in Basket: None
    Part Number: ac425108n
    Price: $88.75
    Sold As: 1 Pair Of Tie Rods Complete With Four Tie Rod Ends
    Mfg UPC: EMPI 22-2853-0


    Quantity:

    Pre 1968 VW front ends usually use an early tie rod set. To check to see what your front end requires use a 17mm and 19mm box end wrench. Put the wrench on each of the four nuts that hold the tie rod to the pitman arm and the tie rod to the spindle. If a 17mm wrench fits onto the nut, they are early model tie rod ends. If a 19mm wrench fits onto the nut, they are late model tie rod ends. It is important that you check all four tie rod ends because some vehicles have two early model and two late model ends. This tie rod set will have four late model ends.

    Here is a picture showing how to measure a volkswagen tie rod end:How to measure a volkswagen tie rod end
