MSD Ignition

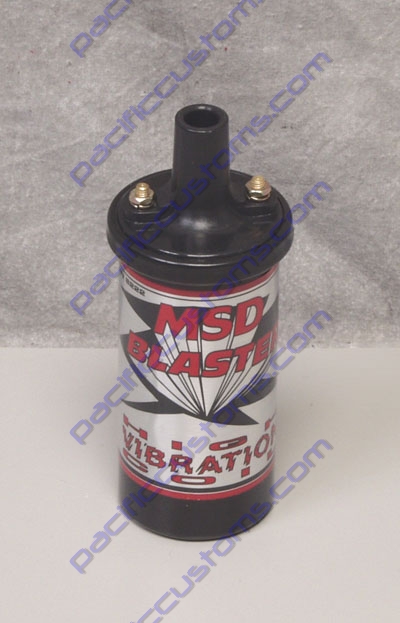

MSD COIL, BLASTER 2, HIGH-VIBRATION
	Quantity in Basket: None Code: MSD8222 Price: $60.00 Parts In Set: EACH
	Quantity:
Blaster High Vibration Coil, PN 8222 For circle track, off road and other severe duty racing applications, this is the coil! The windings of the High Vibration Coil are completely encased in a premium epoxy making it impossible for vibration to affect the windings. This assembly is housed in a unique alkyd molded shell which provides high dielectric characteristics plus a very durable shell. Brass primary terminals ensure full voltage delivery and are spaced far apart to eliminate the chance of spark arc-over. The High Vibration Coil can be mounted in any position and can be used with a standard canister coil mount. BLASTER HIGH VIBRATION SPECIFICATIONS Primary Resistance: 0.7 ohms Secondary Resistance: 4.7K ohms Maximum Voltage: 45,000 volts Inductance: 8 mH Turns Ratio: 100:1 Peak Current: 140 mA Spark Duration: 350 Us Tested with an MSD 6AL at the plug gap.

Code	Name	Image	Price
MSD3193	MSD SPARK PLUG WIRES, 8.0MM BLUE, FOR USE WITH MSD DISTRIBUTOR		$42.00
MSD31939	MSD SPARK PLUG WIRES, 8.5MM RED, FOR USE WITH MSD DISTRIBUTOR		$61.00
MSD6200	MSD 6A IGNITION CONTROL BOX		$235.00
MSD6420	MSD 6AL IGNITION CONTROL BOX		$285.00
MSD8202	MSD COIL, BLASTER 2, FOR USE WITH IGNITION CONTROL BOX		$45.00
MSD8203	MSD COIL, BLASTER 2, WITH BALLAST FOR IGNITION WITH POINTS		$46.00
MSD8434	MSD REPLACEMENT CAP FOR MSD #8485 BILLET DISTRIBUTOR		$20.00
MSD8470	MSD REPLACEMENT ROTOR FOR MSD #8485 BILLET DISTRIBUTOR		$10.00
MSD8485	MSD BILLET DISTRIBUTOR		$260.00
